Battery Failsafe Devices

 Low Voltage Battery Monitors



Keeping you informed



"Manufactured in the USA"

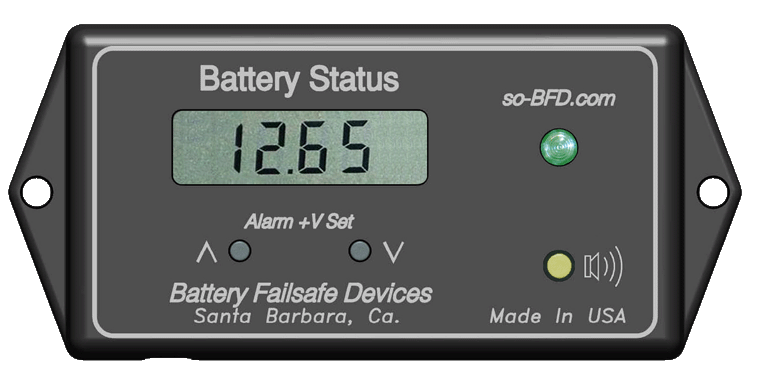

LCD Low Battery Monitor

Monitors battery voltage from +12 to +72 volts



Description: index_files/image0011.gif

Order Part Number: SBA-1272V



The next generation of Battery Support Systems for all battery types.

Battery Failsafe Devices™ has introduced products to meet the needs

of running a battery voltage too low. With a wide range of settings, we’ve got you covered!

The device comes with a large LCD voltage readout and L.E.D. indicator along with buzzer to warn of low voltage.

Multi-color L.E.D. configurations indicates the battery status.

Measures 2 x 4 x 1 plus mounting ears



Microprocessor controlled Low Battery Monitor for all battery systems.

This device will monitor your battery voltage and warn you of unsafe levels.

The Low Battery Monitor is completely user adjustable with 10 low voltage settings to support your battery voltage needs.

 $65.50 each + shipping

For shipping outside the U.S.A. contact us via email prior to ordering



For more product information, call 805-683-9684

or email: bfd-info@so-bfd.com



Please contact us about custom configurations to meet your needs.



Features:

<

Now Lithium Ion compatible

Less than 5 milliamp current draw

Easy to read LCD voltage read out

Ten easily adjustable low voltage alarm settings

Senses voltage when connected to battery source

Loud audible 70db alarm with LED visual warning

Prevents battery failure and battery cell damage

6 foot DC power cord

Optional relay switching control available (Call or email for pricing)

Optional remote LED warning lamp (Call or email for pricing)

Optional panel mount, external 105dB buzzer (Call or email for pricing)

1 Year Warranty



Click HERE to download the settings information (PDF)

Click HERE to download the customizable options sheet (PDF)



Uses for the Low Battery Monitor are:



-Battery Backup Systems

- RV house batteries

-Trolling motor battery

- Marine batteries

- Auxiliary Power Units (APU)

- Travel trailers

- Power gate backup battery

- Generator battery

- Battery backup safety equipment



 **************************************************************************************

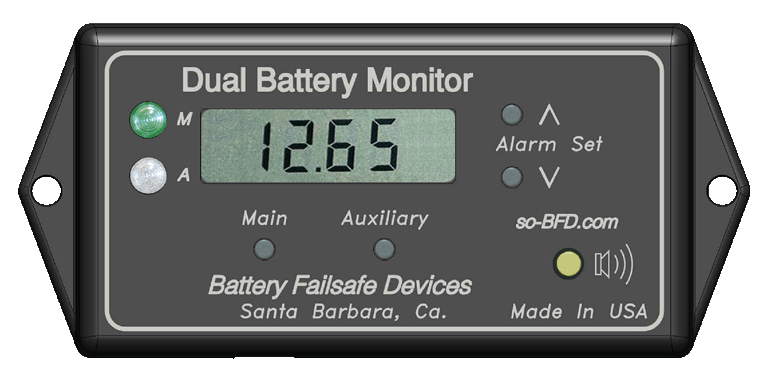

Dual Battery Bank Voltage Monitor

 Can be used for any battery voltage configuration

Monitors battery voltage for +12 to +72 volts



Description: index_files/image0011.gif

Order Part Number: DBA-1272V



The next generation of Battery Support Systems for dual battery applications.

Battery Failsafe Devices™ has introduced products to meet the needs

of running a battery voltage too low. With a wide range of settings, we’ve got you covered!

The device comes with a large LCD voltage readout and L.E.D. indicator along with buzzer to warn of low voltage.

Multi-color L.E.D. configurations indicates the battery status.

Measures 2 x 4 x 1 plus mounting ears



Microprocessor controlled Low Battery Monitor for dual battery systems.

This device will monitor your battery voltage and warn you of unsafe levels.

The Dual Low Battery Monitor is completely user adjustable with 10 low voltage settings to support your battery voltage needs.

 $94.50 each + shipping

For shipping outside the U.S.A. contact us via email prior to ordering



For more product information, call 805-683-9684

or email: bfd-info@so-bfd.com



Please contact us about custom configurations to meet your needs.



Features:



Now Lithium Ion compatible

Voltage sensing for +12 to +72 volts

Easy to read LCD voltage read out

Ten easily adjustable low voltage alarm settings

Senses voltage when connected to battery source

Loud audible 70db alarm with LED visual warning

Prevents battery failure and battery cell damage

Less than 5 milliamp current draw

6 foot, 3 wire power cable for battery connections.

Optional relay switching control available (Call or email for pricing)

Optional LCD backlight, on demand night viewing. (Call or email for pricing)

Optional panel mount, external 105dB buzzer (Call or email for pricing)

1 Year Warranty



Click HERE to download the settings information. (PDF)

Click HERE to download the customizable options list. (PDF)

Click HERE to download a Multi-Battery Marine switch configuration. (PDF)





**************************************************************************************

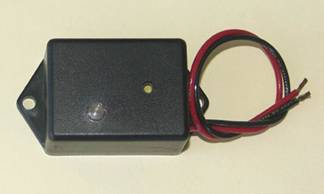

Low Battery Alarm XL

Description: Description: Description: index_files/image001.jpg

Order Part Number: LBA-612V



Alarm XL is an all-new Micro Processor Controlled Low Battery Alarm.

For use with +6 volt and +12 volt applications.

Our Alarm XL gives off a loud 4-sequence tone, along with the LED lamp turning from green to flashing red.

Optional delay alarm set point (Call or email for pricing)

Measures 1 ˝ X 2 with mounting ears.


$37.50 each + shipping

For shipping outside the U.S.A. contact us via email prior to ordering



Note: This device comes preset, please call or email

with your alarm set point prior to ordering



For more product information, call 805-683-9684

Click HERE to download the information sheet (PDF)

or email: bfd-info@so-bfd.com





Please contact us about custom configurations to meet your needs

Please click here to email us with any questions or comments.
